Vampire V600 V2 No Workpage  1 2

Andrew Miller

Posts 223
14 Jul 2019 22:21


Simo Koivukoski wrote:

I'm not sure if they are reflections, but I can spot many shorts from the JPG.

I'm guessing you are looking at U1 & U2, thats more than likely just the way it looks. Though I would be more concerned with what looks like solder adhering to the tracks, may even be a track repair.
EG from U1 pin 2, U2 pin 2,3, and a few others on those chips.


Gunnar von Boehn
(Apollo Team Member)
Posts 4839
15 Jul 2019 08:00


Doctor itchy wrote:

I agree with you :), only here it's not my card, it's a customer who bought it on amibay and asked me to install it, nothing to complicate at the base, but it turns out that there is a problem! , the customer know that the card does not go, and considering the price put, ask me to try to save it (which I do regularly, save old machine no matter the state :)), after I imagine that bought directly from the new impeccable would be more judicious;), the idea being to try a restart for the customer, after free him to do what he wants :)

  thank's

We could send you a selftest JIC
Which would maybe help you more.



Simo Koivukoski
(Apollo Team Member)
Posts 562
15 Jul 2019 08:17


Andrew Miller wrote:

Simo Koivukoski wrote:

  I'm not sure if they are reflections, but I can spot many shorts from the JPG.



  I'm guessing you are looking at U1 & U2, thats more than likely just the way it looks. Though I would be more concerned with what looks like solder adhering to the tracks, may even be a track repair.
  EG from U1 pin 2, U2 pin 2,3, and a few others on those chips.

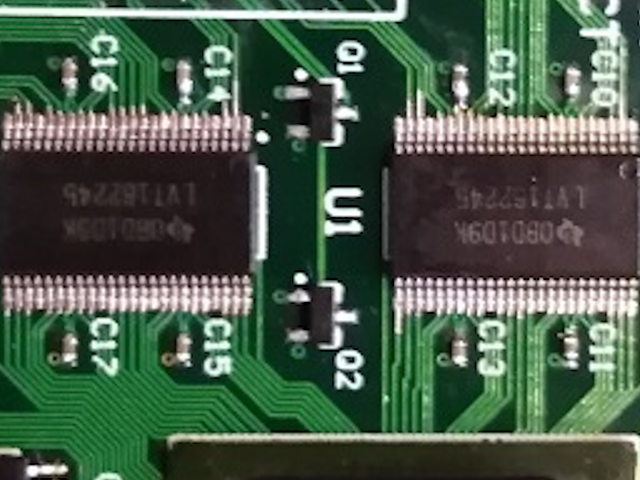

To be honest JPG is not highres enough. Also reflections can play the tricks, but:

There are many more when zooming all over the places. Also a bit too much tin, when it has started to flow along the tracks.



Simo Koivukoski
(Apollo Team Member)
Posts 562
15 Jul 2019 09:17

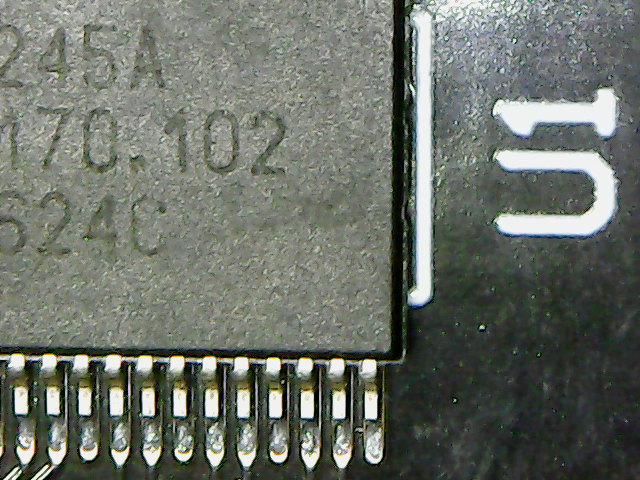

For the reference, original solderin:




Andrew Miller

Posts 223
15 Jul 2019 15:20


Yes it does look a bit poor, but I have seen a lot of that pitch ic looking like that after being reflowed. Usually some residue left between the pins.
Might even be an idea to check if those chips are functioning properly.


Doctor Itchy

Posts 14
15 Jul 2019 16:53


yes the solder are reflowed whit the "flux" , all solder is good , and no CC (fully tested) the problem is 1: ttl level adapter is dead , fpga dead or micro crack on solder , i am searching to download old silver core flashable by usb blaster !


Simo Koivukoski
(Apollo Team Member)
Posts 562
15 Jul 2019 17:07


I can give a Silver JIC for you. Come to IRC and send PM to me /ShK
