Welcome to the Apollo Forum

This forum is for people interested in the APOLLO CPU.
Please read the forum usage manual.



All TopicsNewsPerformanceGamesDemosApolloVampireAROSWorkbenchATARIReleases
The team will post updates and news here

GOLD2.12 Release Candidatepage  1 2 3 4 5 6 7 8 9 10 11 12

Sean Sk

Posts 373
08 Dec 2019 23:21


When using NetSurf with the latest beta core, NetSurf windows is all yellow with reduced colour for text and graphics, which are mainly green and red. I am using the vampiregfx.card that came with the core and put it in LIBS:Picasso96 folder.

I noticed that if I set the workbench screen to 1024x768 BGR (not sure if it supposed to be "BGRA" as "BGR" is all that shows up in the list) then I get the same yellow screen with green and red text/graphics, but if I set it to RGB or ARG (ARGB?) then it is fine. Cannot seem to find a fix for NetSurf though.

Using V600 with AOS 3.1.4.1 and Picasso96 2.4.3.


Simo Koivukoski
(Apollo Team Member)
Posts 563
10 Dec 2019 07:16


I cannot reproduce on AOS 3.9 and Picasso96 2.0.




Leo Foederer

Posts 27
10 Dec 2019 16:25


sean sk wrote:

  I noticed that if I set the workbench screen to 1024x768 BGR (not sure if it supposed to be "BGRA" as "BGR" is all that shows up in the list) then I get the same yellow screen with green and red text/graphics, but if I set it to RGB or ARG (ARGB?) then it is fine. Cannot seem to find a fix for NetSurf though.

  Using V600 with AOS 3.1.4.1 and Picasso96 2.4.3.


  I had this problem with earlier versions of NetSurf. After lowering the color depth of the screen from 24 bit to 16 or 15 bit, this problem disappeared.
As far as I know, this has nothing to do with the Vampire, because I had this on an A4000.


Sean Sk

Posts 373
12 Dec 2019 10:23


So I have done a clean install of Amiga OS 3.1.4. Installed Picasso96 2.0 driver from Aminet. Also installed SAGA driver (I have tried 1.5.2 and 1.7.1). When selecting 1024x768 BGRA mode for workbench, the entire workbench screen is yellow with what appears to be reverse colours for icons, wallpaper etc (almost like looking at a negative photo). If I select RGB or ARGB then it is fine.

The problem with NetSurf itself is that, even if I select RGB or ARGB for workbench, then those changes don't affect NetSurf. NetSurf is stuck with a yellow screen.

If I go into NetSurf's settings and attempt to select RGB or ARGB then this makes no difference either as it seems to be stuck in BGRA mode and therefore anything it displays is yellow with reverse colouring for text and images. NetSurf doesn't seem to have any provision for changing colour mode.

Please remember this happens in the latest RC 3 of 2.12. I don't believe that I was even experiencing this with RC 1 or RC 2. And it certainly doesn't occur in GOLD 2.11.

So again my system configuration is:

    Amiga 600 with Vampire 600 V2
    Amiga OS 3.1.4 (fresh install)
    Picasso96 2.4.3 (Also tried 2.0 as already stated)
    SAGA v1.5.2 (Have also tested v1.7.1)

Have tried 2 different monitors with same results.

Surely someone must have a similar config as this and run into this issue. :)


FairLight Crack

Posts 4
12 Dec 2019 19:12


Simo Koivukoski wrote:

GOLD2.12 Release Candidate 3 (r7123) for the Vampire V600 / V500 V2(+) boards.

Thanks for this great update.


Roy Gillotti

Posts 430
12 Dec 2019 19:16


sean sk wrote:

  Surely someone must have a similar config as this and run into this issue. :)


  It's been an issue ever since I've owned a Vampire on an early gold core, going down to a 16-bit color desktop always "fixes" it.


Sean Sk

Posts 373
13 Dec 2019 13:30


Roy Gillotti wrote:

It's been an issue ever since I've owned a Vampire on an early gold core, going down to a 16-bit color desktop always "fixes" it.


OK, thats weird. I never experienced any issues like this from GOLD 2.0 all the way to GOLD 2.12RC2. In fact, just went back to 2.12RC2 and its back to normal. Then flashed RC3 again and the yellow screen comes back for the BGRA setting.

Another issue I have discovered in RC3 is that when selecting 16 Bit PC mode, then entire screen gets squashed to the left hand side (to about the first 3rd of the screen). Again this doesnt happen with RC2 or earlier.


Simo Koivukoski
(Apollo Team Member)
Posts 563
15 Dec 2019 12:18

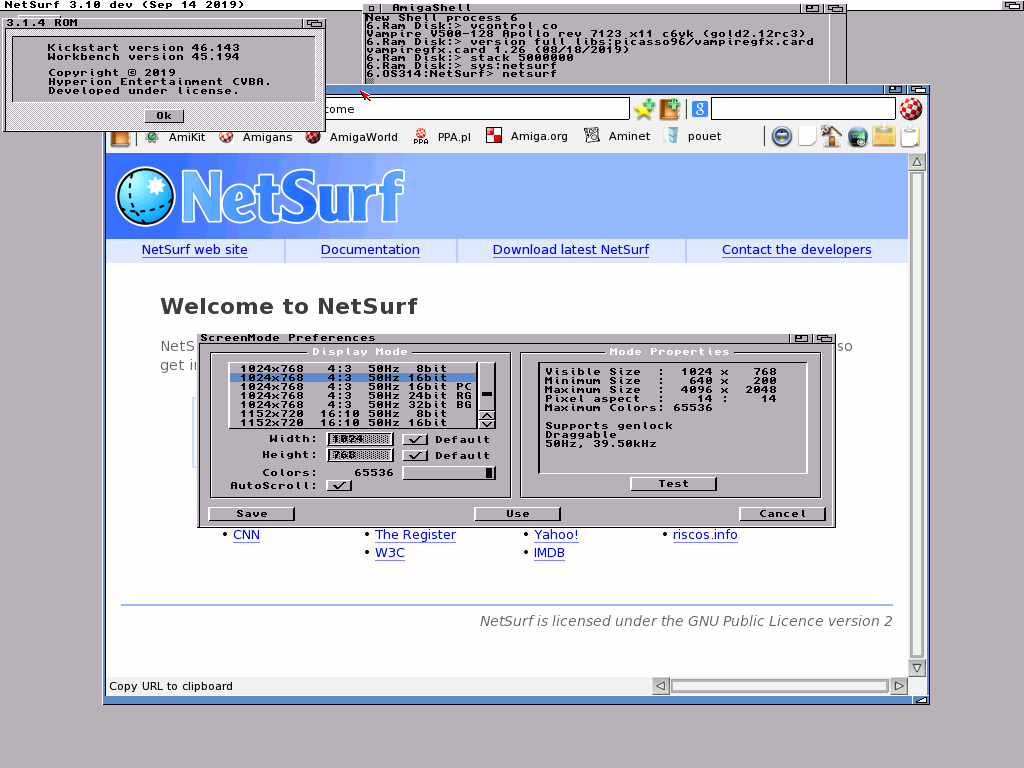

Gold 2.12 RC3
AOS 3.1.4.1
Picasso96 2.4.3




Sean Sk

Posts 373
17 Dec 2019 01:17


Hi Simo,

I noticed in your Screenmode Prefs for OS 3.1.4 that you have 16bit selected (same as your OS 3.9 screenshot). What happens to your workbench screen when you select 32bit BRGA?


Simo Koivukoski
(Apollo Team Member)
Posts 563
17 Dec 2019 03:15


Not Vampire related, but I have used 16-bit mode (R5G6B5) with NetSurf, because Artur Jarosik asked to use it only. Here are modes which SAGA supports and within parentheses which Amiga Workbench supports.

      Chunky:
          CLUT:    (Workbench) 8bit chunky with palette
      HiColor:
          R5G5B5:  (Workbench) 15bit HiColor (0rrrrrgggggbbbbb)
          R5G5B5PC:            15bit HiColor (gggbbbbb0rrrrrgg)
          R5G6B5:  (Workbench) 16bit HiColor (rrrrrggggggbbbbb)
          R5G6B5PC:            16bit HiColor (gggbbbbbrrrrrggg)
      TrueColor:
          R8G8B8:  (Workbench) 24bit TrueColor (8 bit each)
          A8R8G8B8: (Workbench) 32bit TrueColor ARGB (A unused alpha channel)
          B8G8R8A8:            32bit TrueColor BGRA (A unused alpha channel)
      YUV:
          RGBFB_Y4U2V2:        2byte TrueColor (YUV422)



Sean Sk

Posts 373
19 Dec 2019 09:34


Thanks Simo. Still my question is though, have you actually set your Workbench screen prefs to 32bit BGRA?

The following shows the results of 32bit BGRA. It is supposed to be yellow but the camera can't capture it, so assume all the white areas are actually yellow. As you can see the colours are all wrong:

EXTERNAL LINK

The following is Workbench set to 16 bit PC:

EXTERNAL LINK

No mater what 32 bit mode I try to set in Netsurf it is always BGRA:

EXTERNAL LINK

If I set 16 bit mode, I get this:

EXTERNAL LINK

Ignore the fact that the settings say 24 bit, I was in the process of changing it. You'll also notice that mouse pointer looks fine in each shot as well as the Netsurf settings window.


Gunnar von Boehn
(Apollo Team Member)
Posts 4840
19 Dec 2019 09:48


sean sk wrote:

Thanks Simo. Still my question is though, have you actually set your Workbench screen prefs to 32bit BGRA?


Why should he do this?

SAGA support both Big-Endian and Little-Endian GFX modes.
AMIGA and MAC OS typically uses the Big-Endian modes.
So on AMIGA you will find many programs needed the Big-Endian mode to have correct colors.

The Little Endian modes are useful for PC-Task and other PC emulators - its not recommended to use them for Workbench!



Sean Sk

Posts 373
19 Dec 2019 09:54


Let's forget about Netsurf for a moment. It's happening in Workbench as well when Netsurf isn't running. Whereas in previous cores those modes are fine.

EDIT: Ok I just read your re-edited post. Ok no probs, I understand. I repeat, though, that those modes that I mentioned did work in older cores.

Also it doesn't mater what 16bit mode I set Netsurf to, it does what is shown in the last picture so even normal 16 bit mode doesn't work for me.


Blind Guy

Posts 4
21 Dec 2019 15:32


Simo Koivukoski wrote:

GOLD2.12 Release Candidate 3 (r7123) for the Vampire V600 / V500 V2(+) boards.

  Vampire 500 V2(+) flasher EXE: EXTERNAL LINK
  Vampire 600 V2 flasher EXE: EXTERNAL LINK

Hello, I am new to Vampire and I have a 600 V2.2 and would like to try and flash this but have a few questions.

When I flashed 2.11, I used the V600_5851_G211_693-562.jic file and that was fine.  The link you provided has three files and none of them are a .jic file.  Are there some instructions that I am missing.

Also, the notes say vampiregfx.card 1.26 (18.08.19) is needed, copy it to the LIBS:Picasso96 -folder.  do I do that before I flash the card?

I appreciate any assistance you can provide.

blindguy



Vojin Vidanovic

Posts 1697
21 Dec 2019 16:25


blind guy wrote:

  I appreciate any assistance you can provide.

  blindguy


For EXE files you need to have bootable AmigaOS. But need no lame PC!
For JIC files you need USB Blaster, PC, Tools and step by step patience

SAGA drivers and P96 are installed AFTER core update, if core is latest, DRIVERS HAVE TO BE LATEST too :)


Simo Koivukoski
(Apollo Team Member)
Posts 563
21 Dec 2019 16:26


Yes, it's a flasher EXE file for Amiga. Unpack Lha file into your SYS: root. Then reboot and go to 'Early Startup' by holding the both mouse buttons. Select 'Boot With No Startup-Sequence' to access CLI. Execute 'flashromkickV600_7123_11x_c6gk'. After that you can also copy vampiregfx.card to its place. Then power off and wait 10 sec before powering up again.

https://wiki.apollo-accelerators.com/doku.php/system_tools:installing_cores_flashrom



Blind Guy

Posts 4
21 Dec 2019 18:07


Thanks! Grabbing things now!


Blind Guy

Posts 4
21 Dec 2019 18:08


This is PERFECT!!! Thanks so much got the detailed notes!
  I test later this evening and report back!  :)

One more questions, I actually bought Picasso96 from individual, can I use that version?

  Have a great Christmas!!

  bg


Sean Sk

Posts 373
21 Dec 2019 23:20


blind guy wrote:

One more questions, I actually bought Picasso96 from individual, can I use that version?

Yes, you can. :)


Vojin Vidanovic

Posts 1697
22 Dec 2019 08:52


blind guy wrote:

  One more questions, I actually bought Picasso96 from individual, can I use that version?

That is, in fact, latest and most recommended P96.
